Hersteller: Teltonika

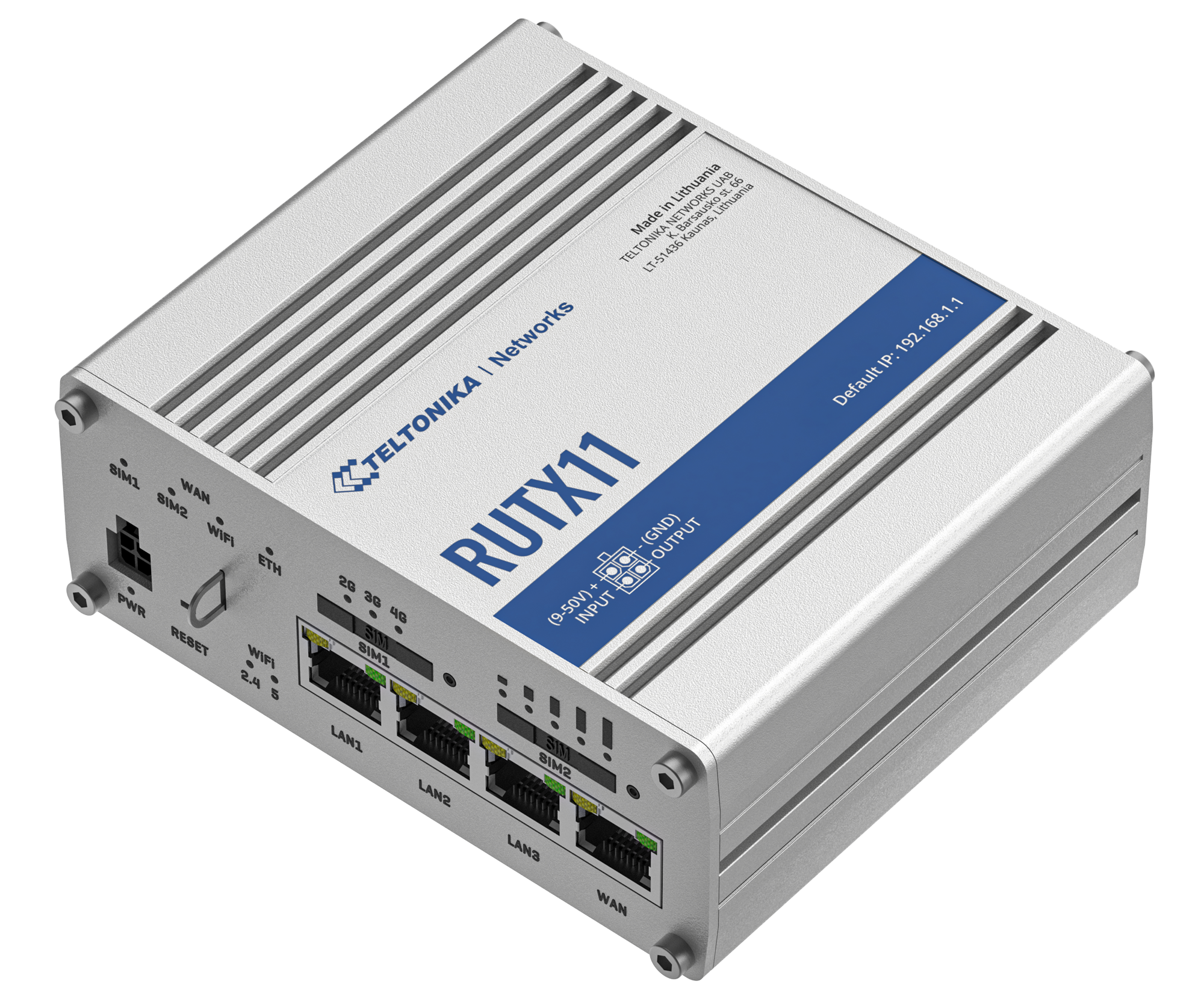

Teltonika RUTX11

Art.Nr.: RUTX11000000

Hersteller: Teltonika

286,99 EUR
incl. 19 % USt

  • Available, at least 4 on stock Available, at least 4 on stock
  • Lieferzeit available
  • Gewicht 0,52 kg

Produktbeschreibung

#1: RUTX11

INDUSTRIAL CELLULAR ROUTER

Dieser leistungsstarke LTE Cat 6 Mobilfunk-Industrierouter ist für professionelle Anwendungen konzipiert, die eine zuverlässige, schnelle Verbindung und einen hohen Datendurchsatz erfordern. Er ist mit vier Gigabit-Ethernet-Ports, AC Wi-Fi und Bluetooth LE ausgestattet und verfügt über Fernverwaltungsfunktionen von RMS.



#2: Im Lieferumfang enthalten

  • Router RUTX11
  • 18 W PSU
  • 2x LTE antennas (swivel, SMA male)
  • 2x WiFi antennas (swivel, RP-SMA male)

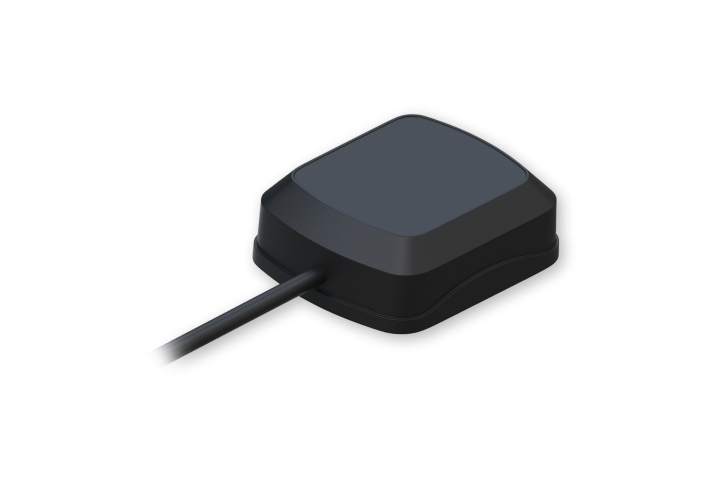

  • 1x GNSS antenna (adhesive, SMA male, 3 m cable)
  • 1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box


#3: Features


MOBILE

  • Mobile module

    4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps

  • SIM switch

    2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

  • Status

    Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation

  • SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

  • USSD

    Supports sending and reading Unstructured Supplementary Service Data messages

  • Black/White list

    Operator black/white list

  • Multiple PDN

    Possibility to use different PDNs for multiple network access and services

  • Band management

    Band lock, Used band status display

  • APN

    Auto APN

  • Bridge

    Direct connection (bridge) between mobile ISP and device on LAN

  • Passthrough

    Router assigns its mobile WAN IP address to another device on LAN


WIRELESS

  • Wireless mode

    802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

  • Wi-Fi security

    WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation

  • SSID/ESSID

    ESSID stealth mode

  • Wi-Fi users

    up to 150 simultaneous connections

  • Wireless Hotspot

    Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes

  • Wireless Connectivity Features

    Wireless mesh (802.11s), fast roaming (802.11r), Relayd

  • Wireless MAC filter

    Whitelist, blacklist


BLUETOOTH

  • Bluetooth 4.0

    Bluetooth low energy (LE) for short range communication


ETHERNET

  • WAN

    1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

  • LAN

    3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover


NETWORK

  • Routing

    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

  • Network protocols

    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)

  • VoIP passthrough support

    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

  • Connection monitoring

    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

  • Firewall

    Port forward, traffic rules, custom rules

  • DHCP

    Static and dynamic IP allocation, DHCP Relay

  • QoS / Smart Queue Management (SQM)

    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

  • DDNS

    Supported >25 service providers, others can be configured manually

  • Network backup

    Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

  • Load balancing

    Balance Internet traffic over multiple WAN connections

  • SSHFS

    Possibility to mount remote file system via SSH protocol

  •

SECURITY

  • Authentication

    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block

  • Firewall

    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

  • Attack prevention

    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

  • VLAN

    Port and tag-based VLAN separation

  • Mobile quota control

    Mobile data limit, customizable period, start time, warning limit, phone number

  • WEB filter

    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

  • Access control

    Flexible access control of TCP, UDP, ICMP packets, MAC address filter


VPN

  • OpenVPN

    Multiple clients and a server can run simultaneously, 27 encryption methods

  • OpenVPN Encryption

    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

  • IPsec

    IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

  • GRE

    GRE tunnel, GRE tunnel over IPsec support

  • PPTP, L2TP

    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

  • Stunnel

    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

  • DMVPN

    Method of building scalable IPsec VPNs

  • SSTP

    SSTP client instance support

  • ZeroTier

    ZeroTier VPN client support

  • WireGuard

    WireGuard VPN client and server support

  • Tinc

    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.


MODBUS TCP SLAVE

  • ID range

    Respond to one ID in range [1;255] or any

  • Allow Remote Access

    Allow access through WAN

  • Custom registers

    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality


MODBUS TCP MASTER

  • Supported functions

    01, 02, 03, 04, 05, 06, 15, 16

  • Supported data formats

    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)


DATA TO SERVER

  • Protocol

    HTTP(S), MQTT, Azure MQTT, Kinesis


MQTT GATEWAY

  • MQTT Gateway

    Allows sending commands and receiving data from MODBUS Master through MQTT broker


DNP3

  • Supported modes

    TCP Master, DNP3 Outstation


MONITORING & MANAGEMENT

  • WEB UI

    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log

  • FOTA

    Firmware update from server, automatic notification

  • SSH

    SSH (v1, v2)

  • SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET

  • Call

    Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

  • TR-069

    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

  • MQTT

    MQTT Broker, MQTT publisher

  • SNMP

    SNMP (v1, v2, v3), SNMP Trap

  • JSON-RPC

    Management API over HTTP/HTTPS

  • MODBUS

    MODBUS TCP status/control

  • RMS

    Teltonika Remote Management System (RMS)


IOT PLATFORMS

  • Cloud of Things

    Allows monitoring of: Device data, Mobile data, Network info, Availability

  • ThingWorx

    Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

  • Cumulocity

    Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength

  • Azure IoT Hub

    Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type


SYSTEM CHARACTERISTICS

  • CPU

    Quad-core ARM Cortex A7, 717 MHz

  • RAM

    256 MB, DDR3

  • FLASH storage

    256 MB, SPI Flash



FIRMWARE / CONFIGURATION

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration


FIRMWARE CUSTOMISATION

  • Operating system

    RutOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided


LOCATION TRACKING

  • GNSS

    GPS, GLONASS, BeiDou, Galileo and QZSS

  • Coordinates

    GNSS coordinates via WebUI, SMS, TAVL, RMS

  • NMEA

    NMEA 0183

  • NTRIP

    NTRIP protocol (Networked Transport of RTCM via Internet Protocol)

  • Server software

    Supported server software TAVL, RMS

  • Geofencing

    Configurable multiple geofence zones


USB

  • Data rate

    USB 2.0

  • Applications

    Samba share, USB-to-serial

  • External devices

    Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

  • Storage formats

    FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4


INPUT / OUTPUT

  • Input

    1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

  • Output

    1 x Digital Output, Open collector output, max output 30 V, 300 mA

  • Events

    Email, RMS, SMS

  • I/O juggler

    Allows to set certain I/O conditions to initiate event


POWER

  • Connector

    4-pin industrial DC power socket

  • Input voltage range

    9 - 50 VDC, reverse polarity protection, voltage surge/transient protection

  • PoE (passive)

    Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

  • Power consumption


    16 W Max



PHYSICAL INTERFACES

  • Ethernet


    4 x RJ45 ports, 10/100/1000 Mbps

  • I/O’s

    1 x Digital Input, 1 x Digital Output on 4-pin power connector

  • Status LEDs


    4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi

  • SIM

    2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders

  • Power

    1 x 4-pin power connector

  • Antennas


    2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS

  • USB

    1 x USB A port for external devices

  • Reset

    Reboot/User default reset/Factory reset button

  • Other


    1 x Grounding screw


PHYSICAL SPECIFICATION

  • Casing material

    Aluminum housing

  • Dimensions (W x H x D)


    115 x 44.2 x 95.1 mm

  • Weight


    456 g

  • Mounting options


    DIN rail, flat surface placement



OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30


REGULATORY & TYPE APPROVALS

  • Regulatory


    CE/RED, RoHS, REACH

  • Vehicle


    ECE R10 (E-mark)



EMC EMISSIONS & IMMUNITY

  • Standards

    EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0

  • ESD

    EN 61000-4-2:2009

  • RS

    EN 61000-4-3:2006 + A1:2008 + A2:2010

  • EFT

    EN 61000-4-4:2012

  • Surge protection


    EN 61000-4-5:2014

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2004


RF

  • Standards


    ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1



SAFETY

  • Standards


    IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017
