Manufacturer: Teltonika

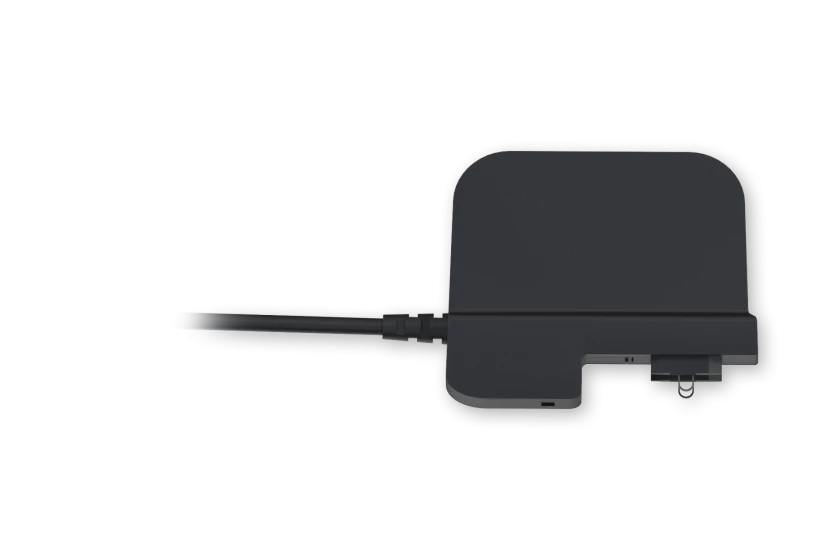

Teltonika PR3PUPS3 - UNIVERSAL POWER SUPPLY, 9W

Product.Nr.: PR3PUPS3

Manufacturer: Teltonika

10,21 EUR
incl. 19 % VAT

  • Sofort versandfähig Sofort versandfähig
  • delivery time sofort lieferbar
  • weight 0,13 kg

product description

#1: PR3PUPS3

UNIVERSAL POWER SUPPLY, 9W



#2: Content of delivery

  • 1x PR3PUPS3


#3: Features


TECHNICAL DATA
  • GENERAL

  • Input voltage

    100 – 240 VAC

  • Input frequency

    50 / 60 Hz

  • Input current

    0.45 A

  • Input connector

    Exchangeable. EU (Type C), US (Type A), UK (Type G) and AU (Type I) included

  • Output voltage

    9 VDC

  • Output current

    1.0 A

  • Output connector

    4-pin, 3 mm pitch

  • ADDITIONAL

  • Input voltage range

    90 – 264 VAC

  • Input frequency range

    47 – 63 Hz

  • Maximum input inrush current

    60 A

  • Output voltage maximum deviation

    8.55 – 9.45 VDC

  • Leakage current

    0.25 mA

  • Ripple and noise

    200 mV

  • Output over current protection

    2 A

  • Standby power

    0.1 W

  • HIPOT (dielectric withstand test)

    Primary to Secondary: 4000 VDC

  • MTBF

    30000 h

  • PSU efficiency standard

    DoE Level VI

  • Certification

    EMC: EN 55032:2015, FCC Part 15B

    EMI: EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004

    Safety: EN 62368-1:2014+A11:2017, UL 62368-1:2014 Ed.2, CSA C22.2 No. 62368-1:2014 Ed.2, AS/NZS 62368.1:2018
